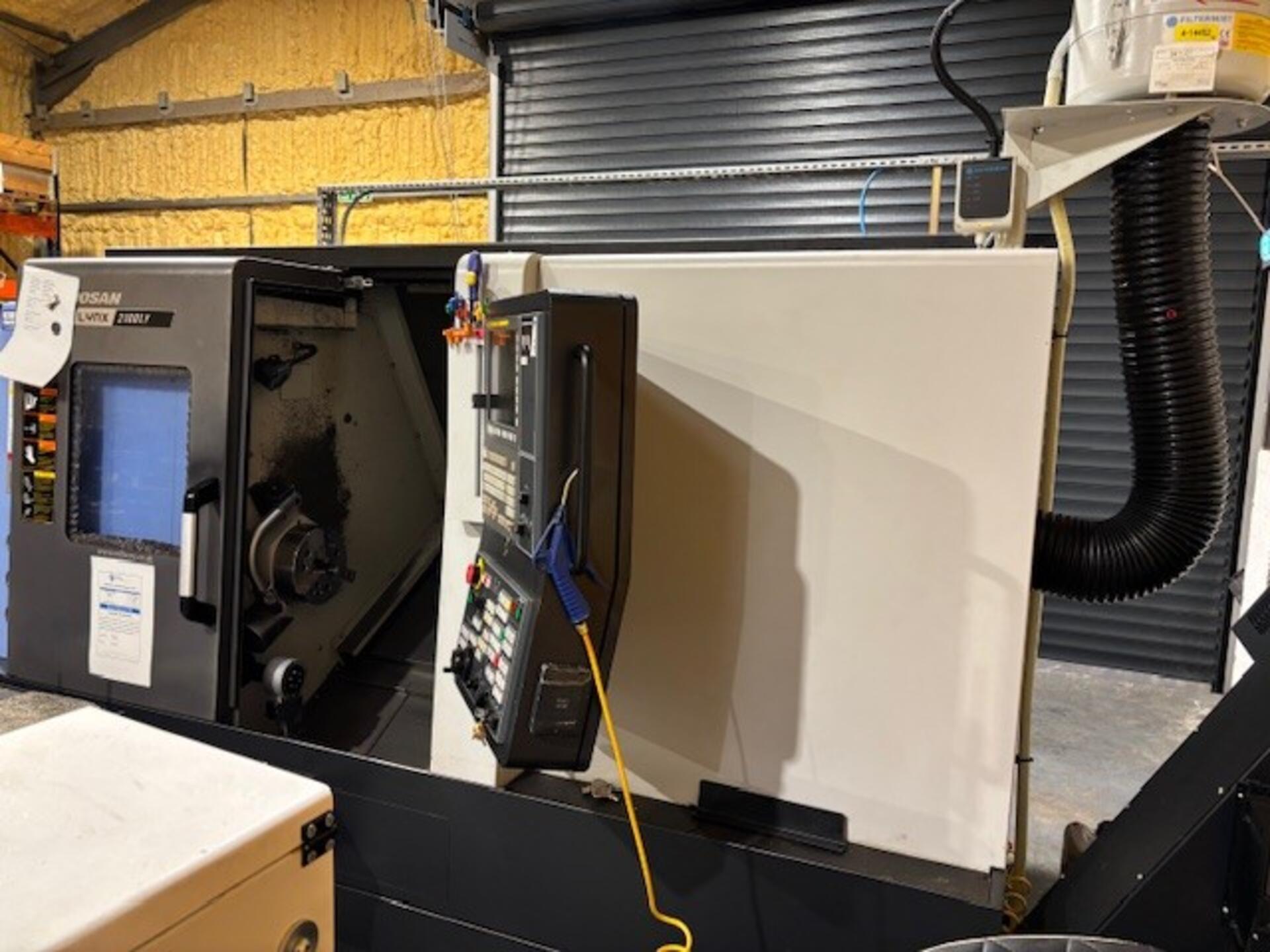

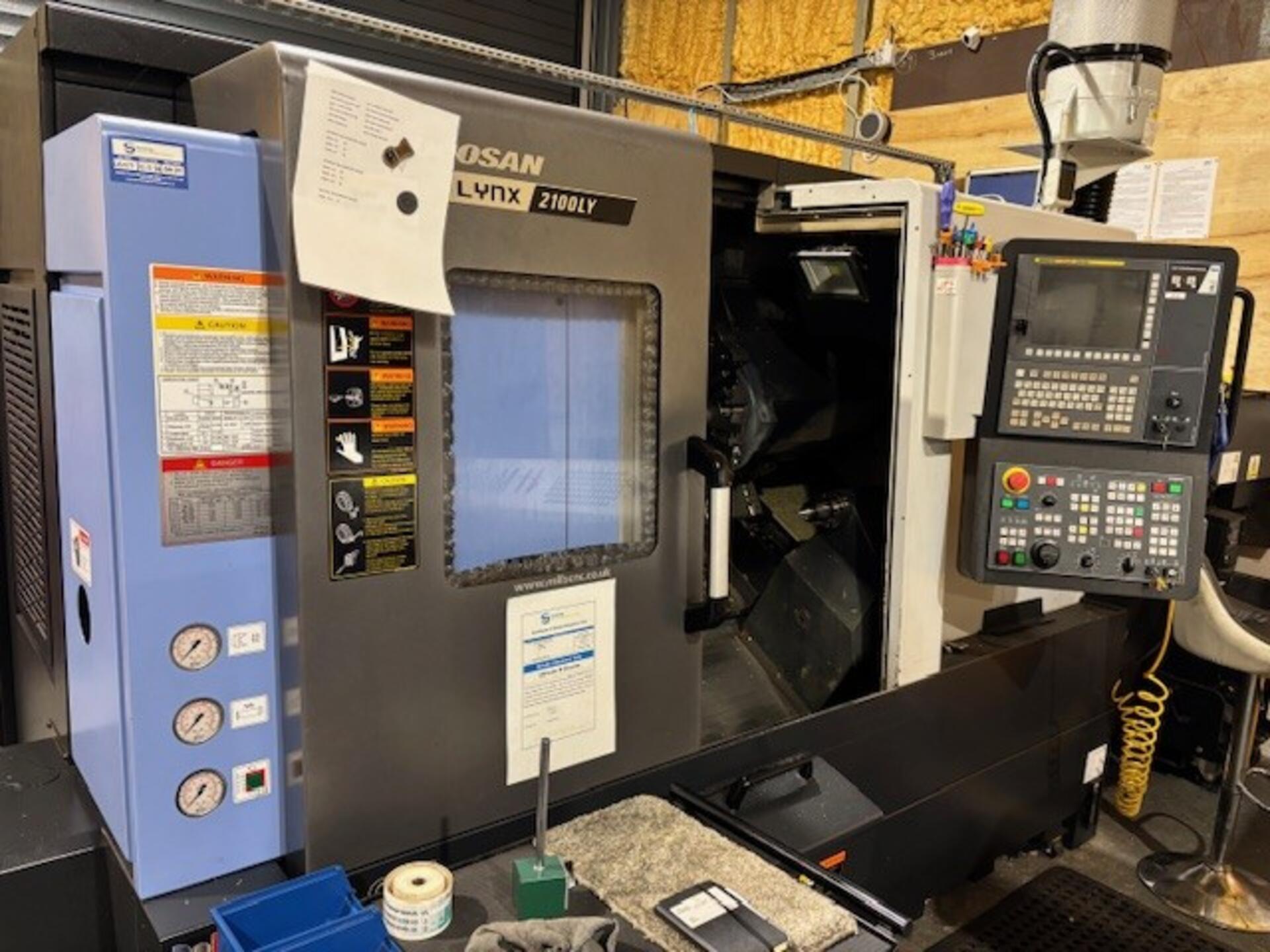

Doosan Lynx 2100 LYB CNC Lathe

Code: ST4084

Doosan Lynx CNC Lathe



Model:                                    2100 LYB

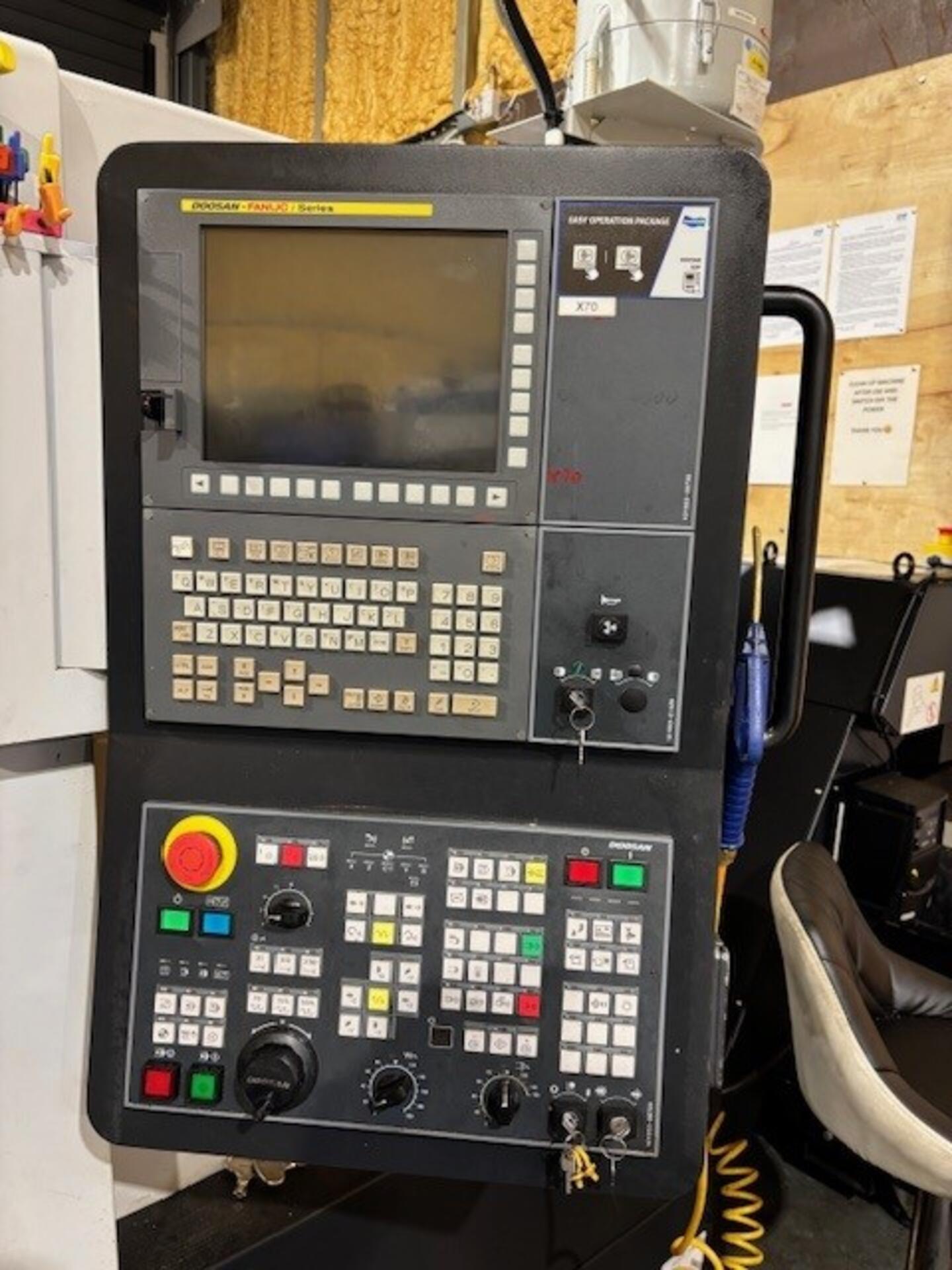

Control:                                  Fanuc i Series

Year:                                       2019



Turning Diameter:                300mm

Turning Length:                   510mm



‘X’ Axis Travel:                      205mm

‘Y’ Axis Travel:                      105mm

‘Z’ Axis Travel:                      560mm



Spindle Speed:                     4500 RPM

Spindle Power:                     15KW

Spindle Torque:                    169N-M



Machine With:

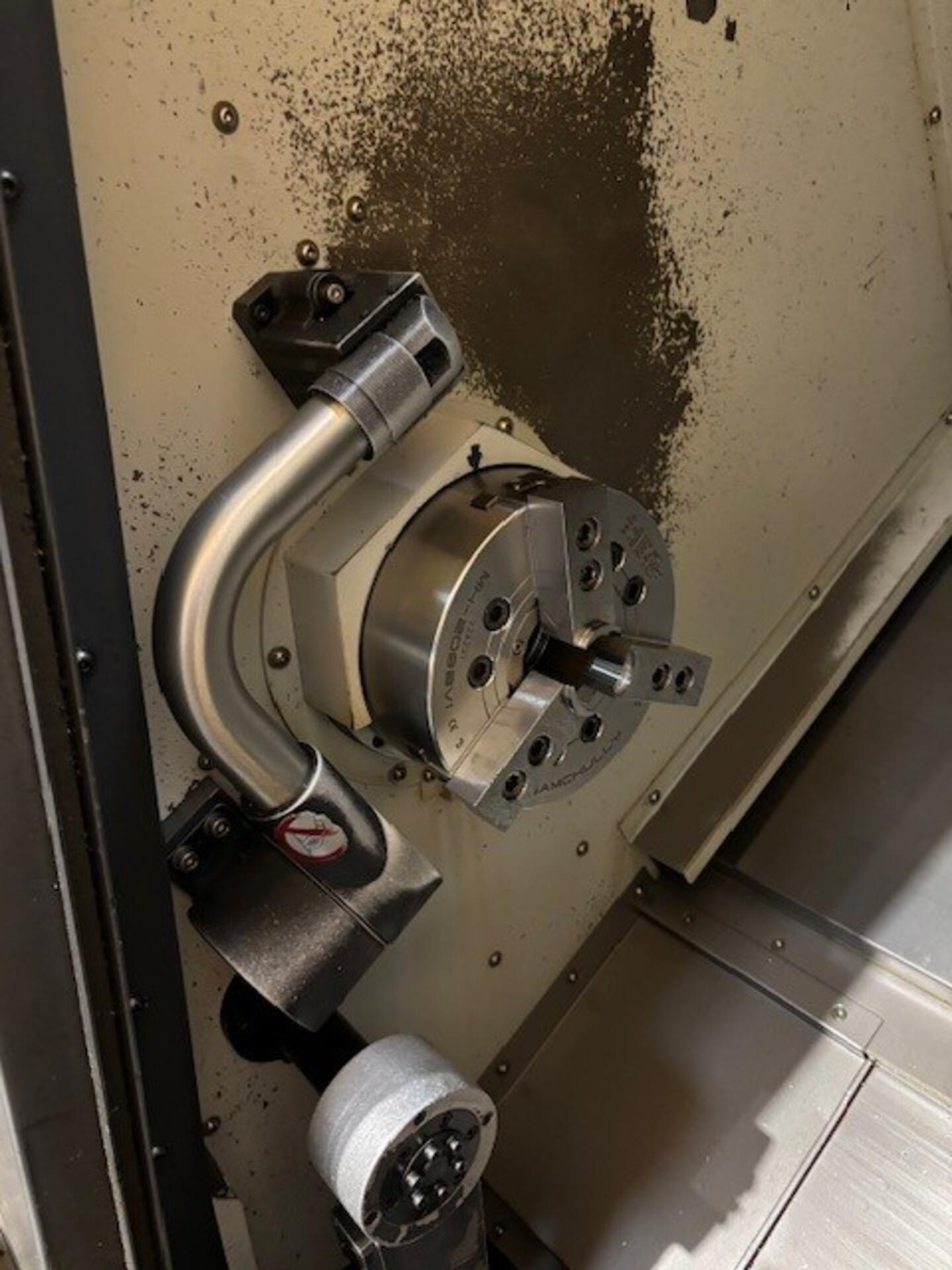

200mm Power Chuck

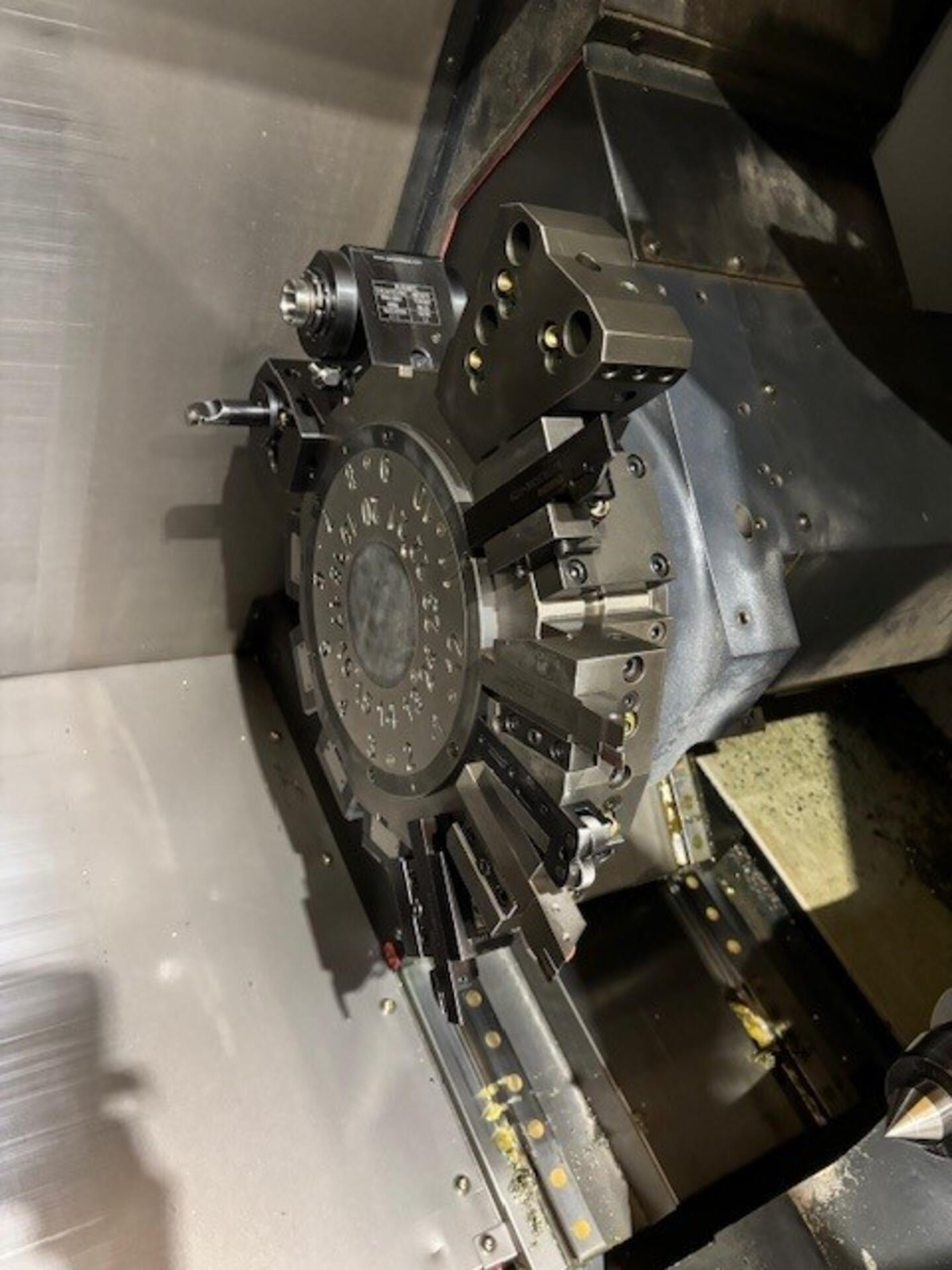

Driven Tools (1-AxiaL -1- Radial)

Tool Eye

Parts Catcher

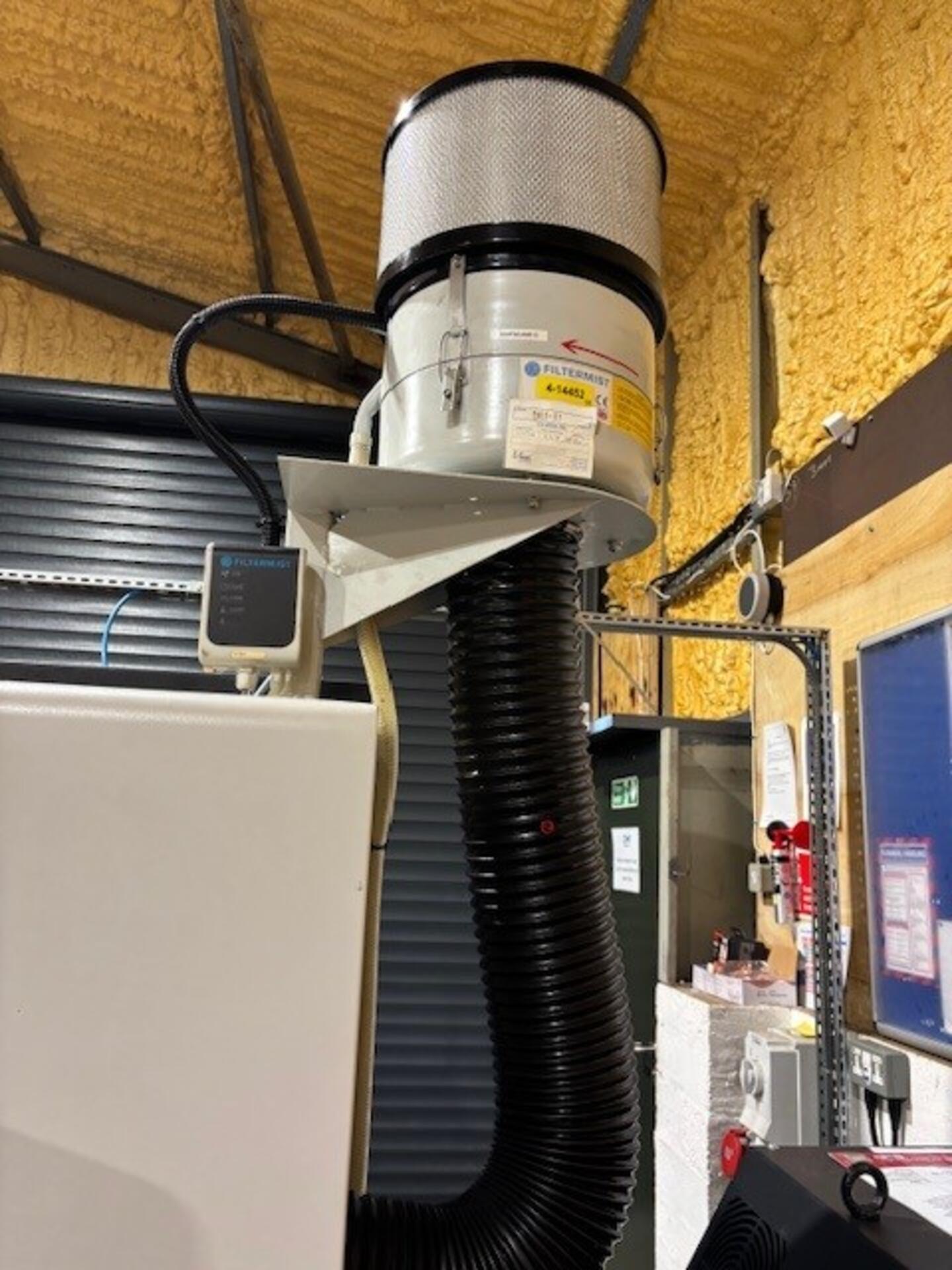

Filtermist



Dimensions: 2880 x 1711 x 1921 High

Weight: 3900 Kgs
