Harrison Gap Bed Lathe x 635mm

Code: ST4121

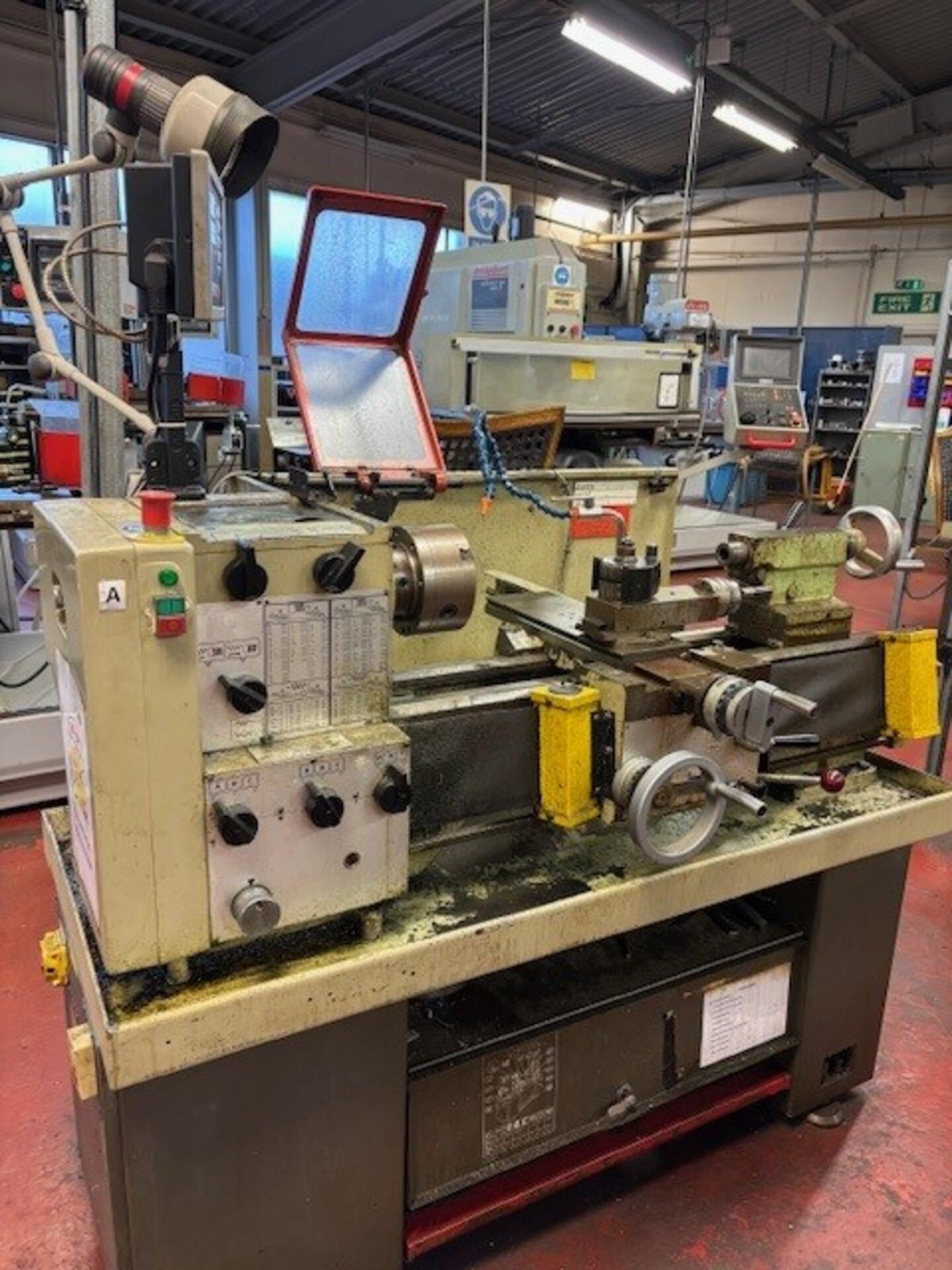

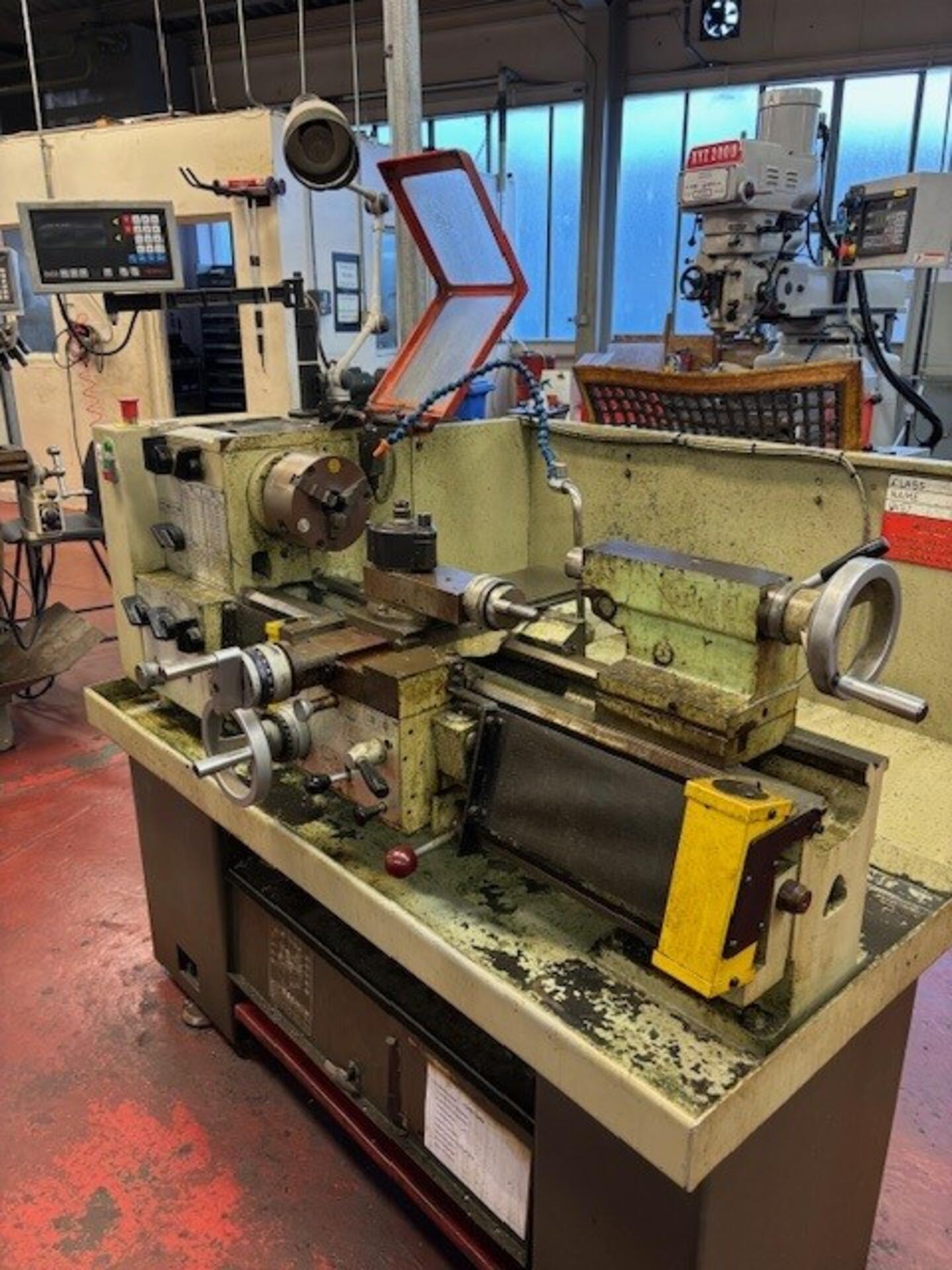

Harrison Gap Bed Lathe



Model:                                                M300



Swing Over Bed:                              330mm

Swing Over Top Slide:                    210mm

Swing In Gap:                                   480mm

Distance Between Centres:           635mm



Spindle Speeds:                               40-2400 RPM

Spindle Bore:                                    38mm

Motor:                                                 2.2 KW



Machine with:

3 Jaw Chuck

4 Jaw Chuck

2 Axis Digital Readout

Coolant

Light

Chuck Guard

Quick Change Toolpost with Holders



Dimensions: 1700 x 900 x 1470mm High

Weight: 600 KGS
