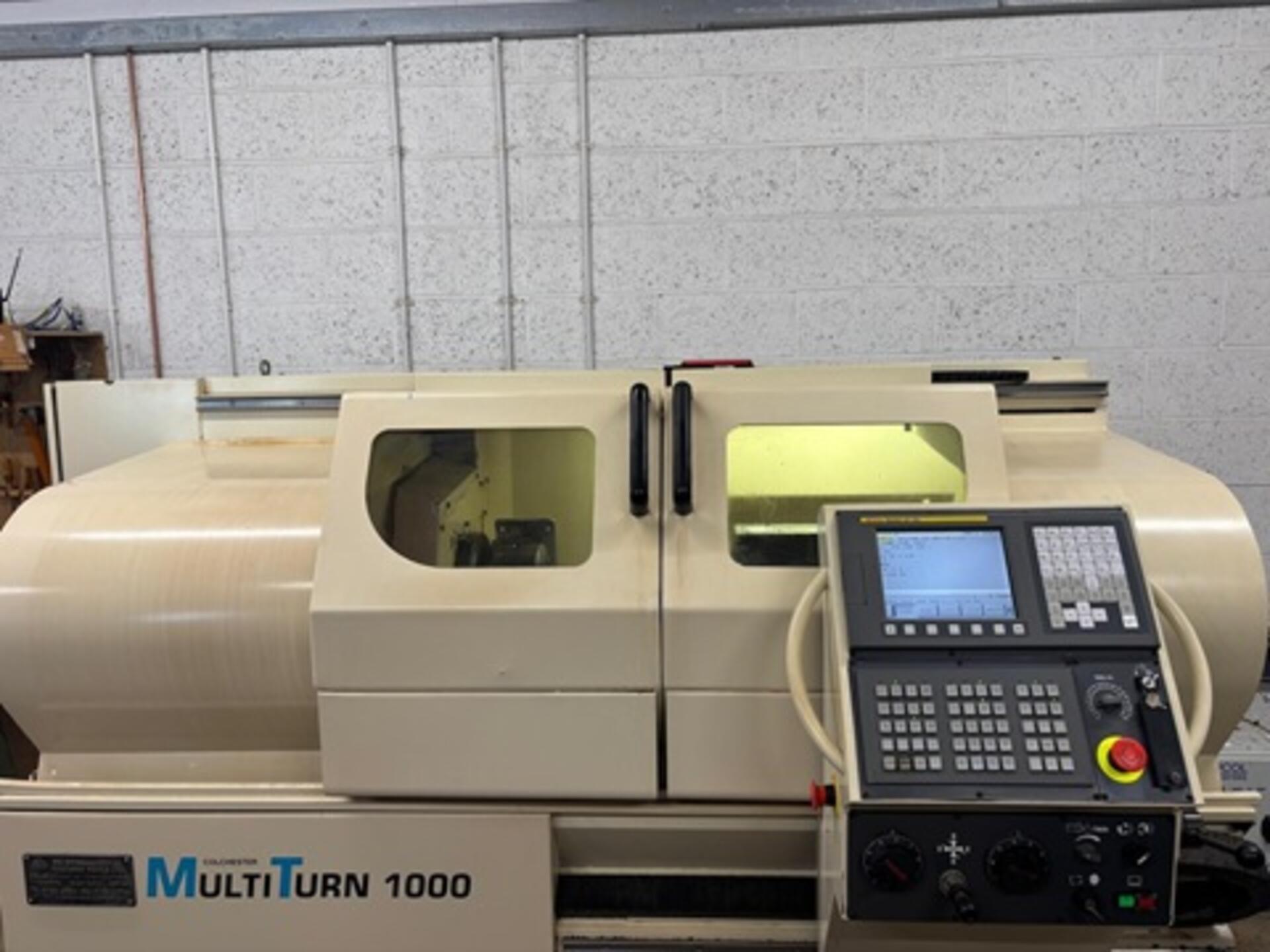

Colchester Multiturn 1000 CNC Lathe

Code: ST4208

Colchester CNC Lathe

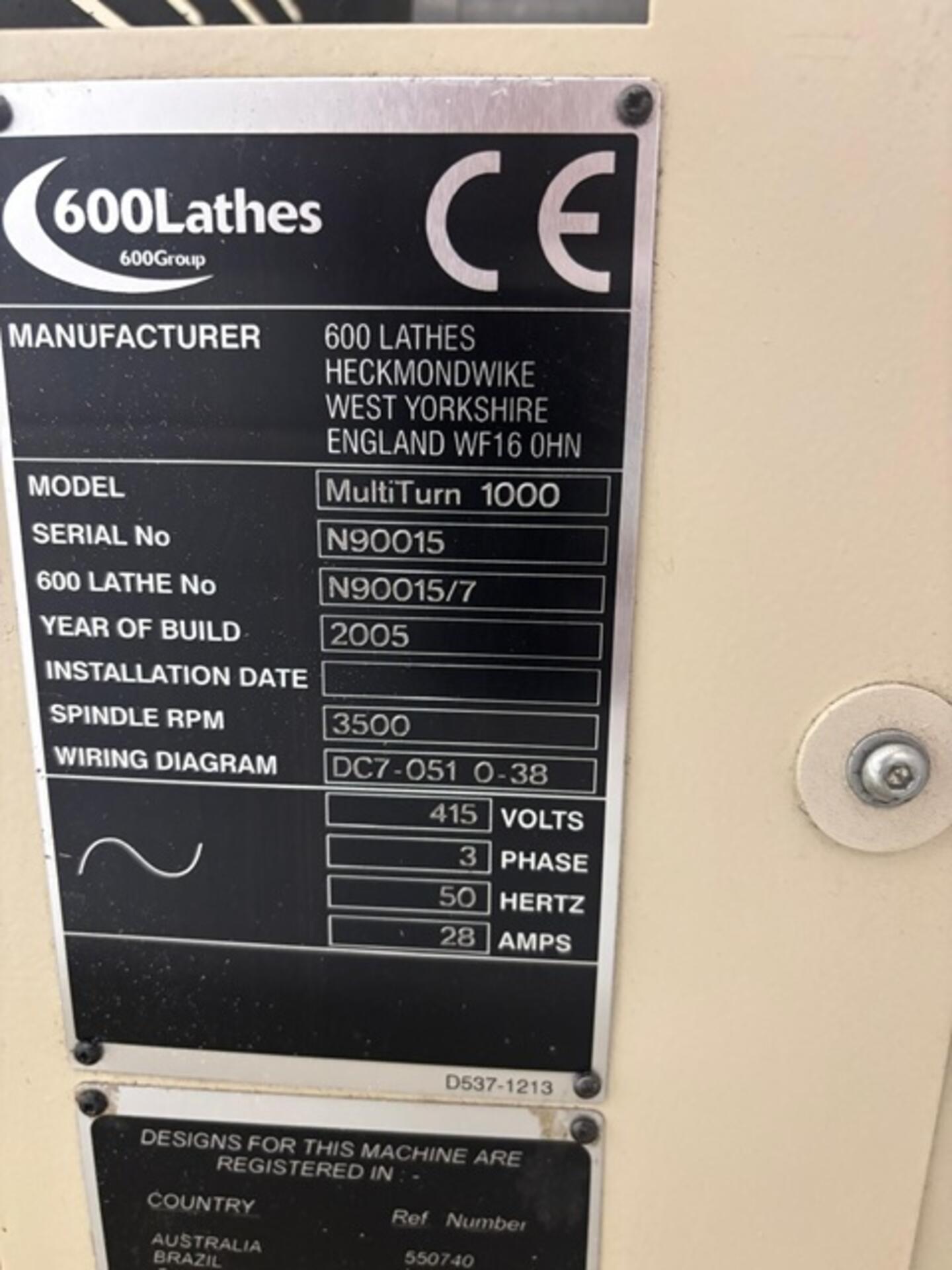

Model: Multiturn 1000

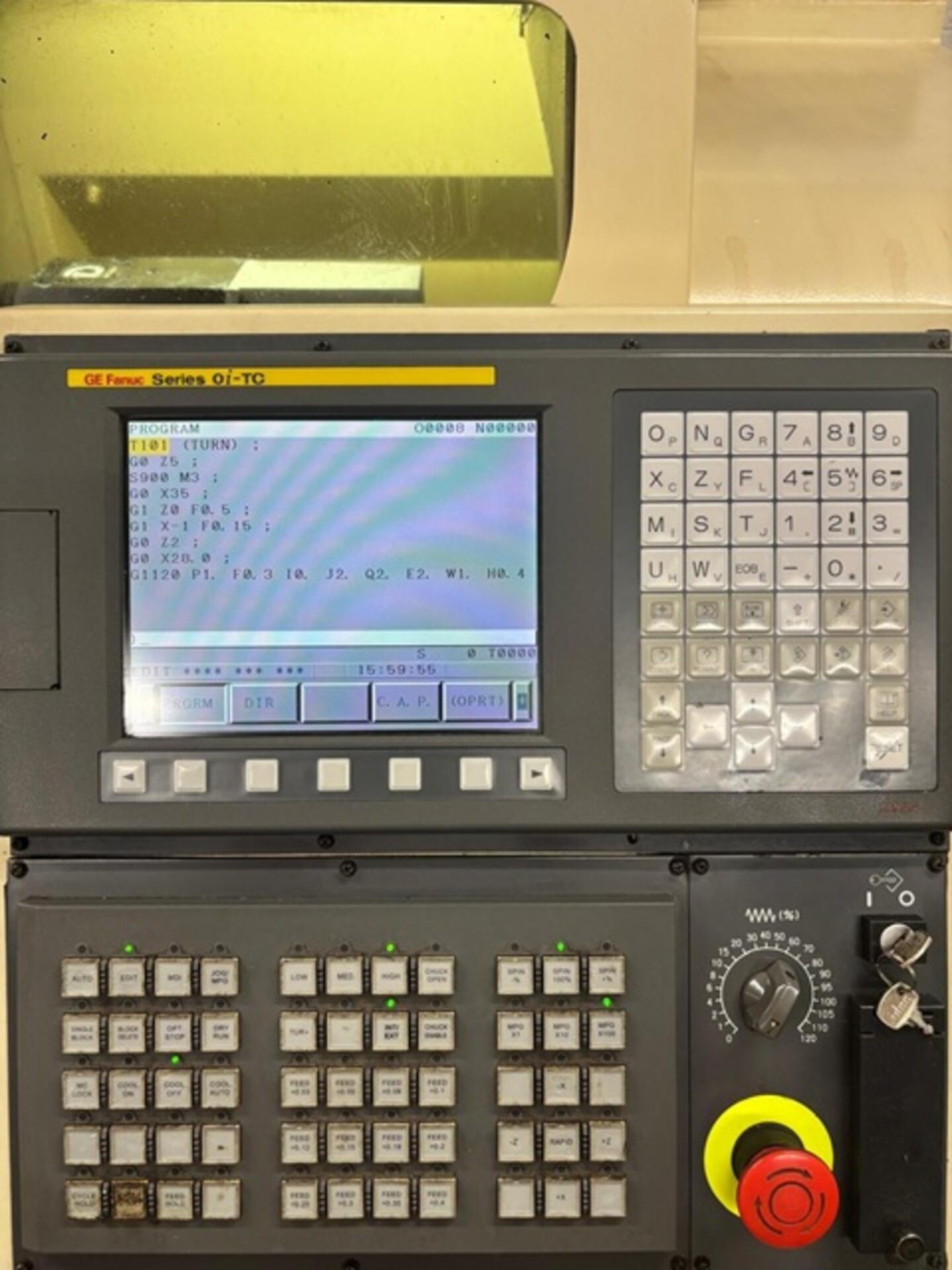

Control: Fanuc Oi-TC

Year: 2005

S/No: N90015



Swing Over Bed: 350mm

Swing In Gap: 535mm

Swing Over Top Slide: 196mm

Distance Between Centres: 650mm



Spindle Speeds: 1-3500 RPM (3 Ranges)

Spindle Bore: 42mm

Motor: 7.5KW



Machine With:

1500mm 3 Jaw Chuck

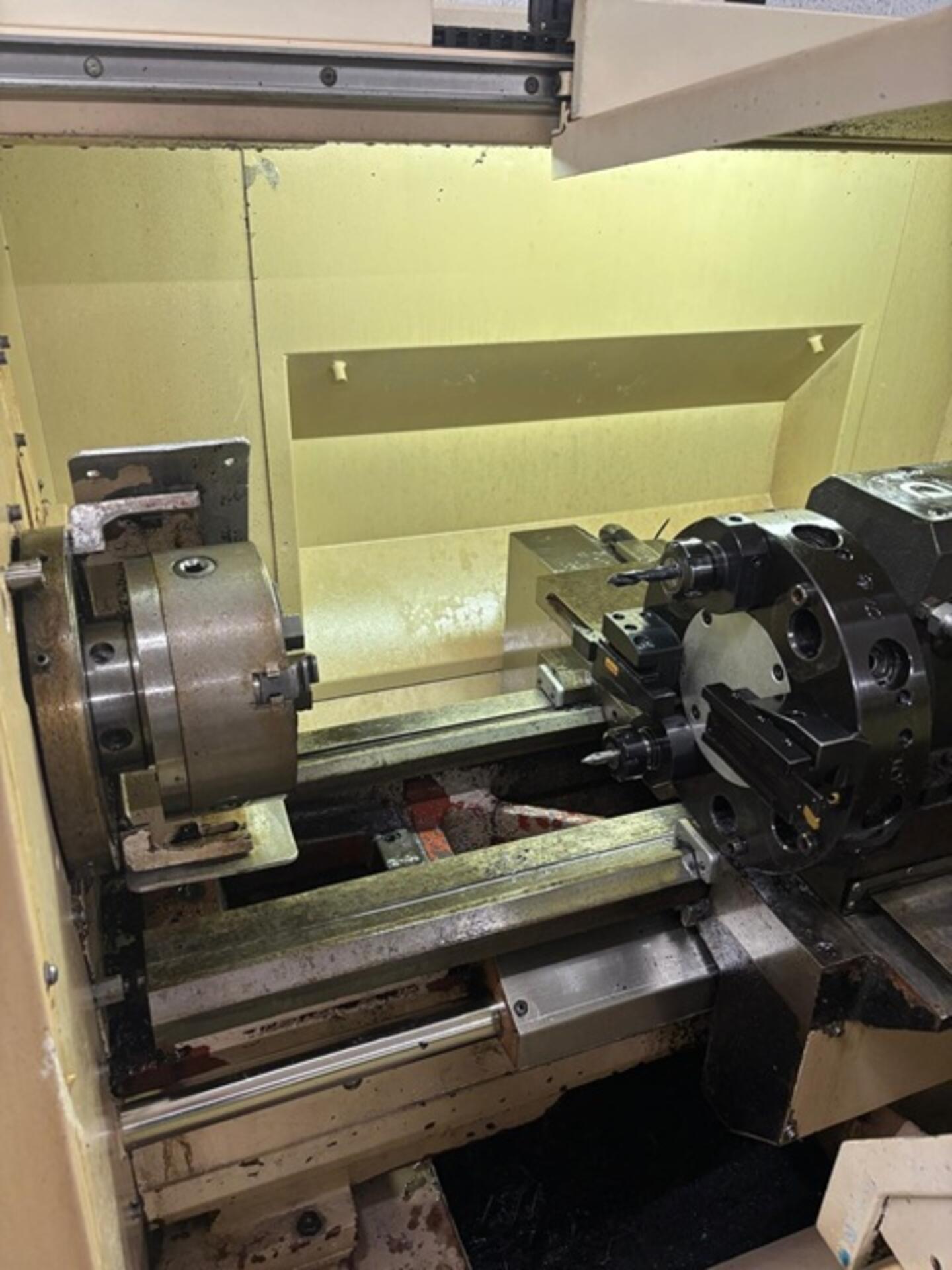

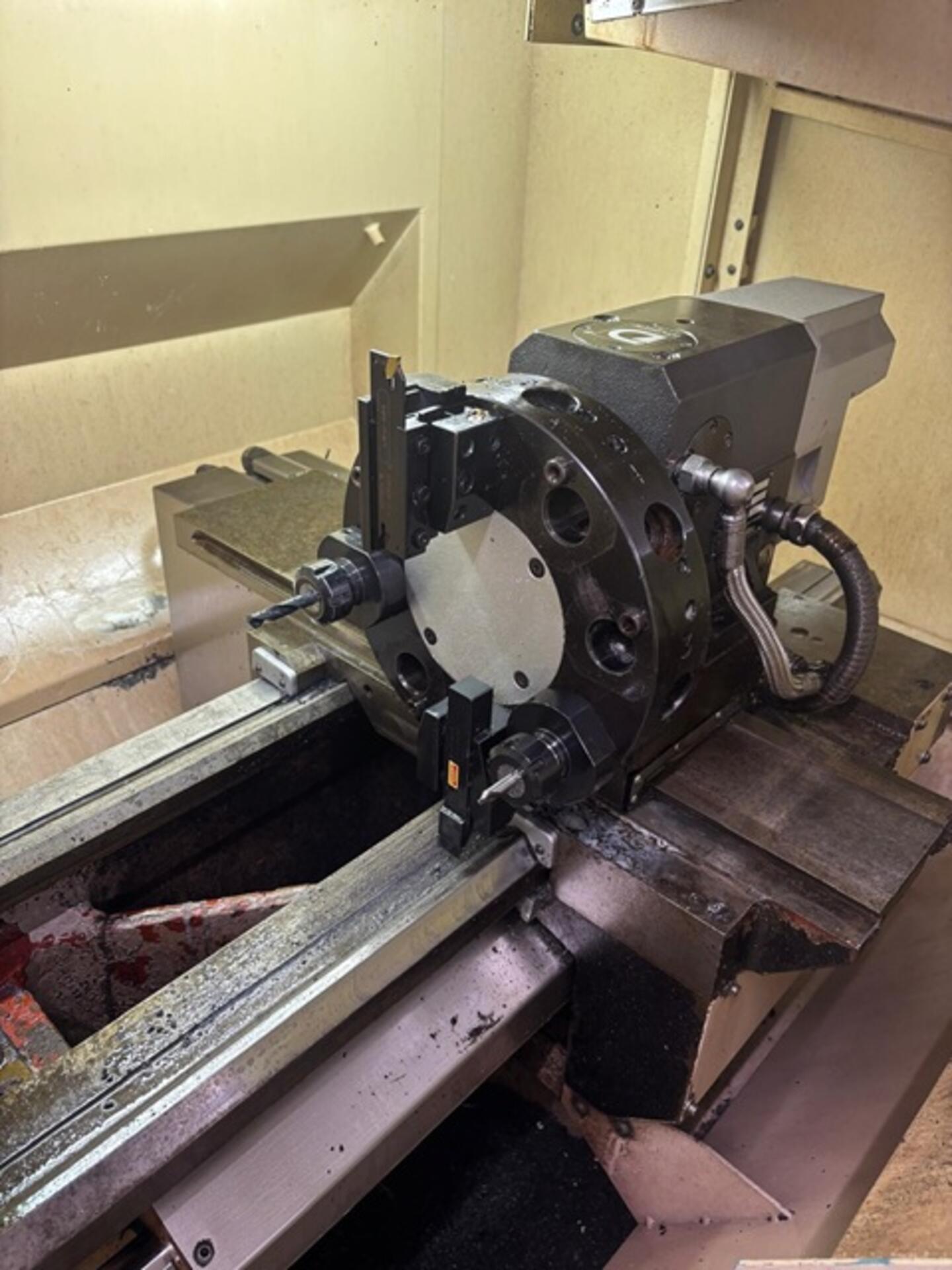

Duplumatic: 8 Station Turret

Turret Tool Holders

Tail Stock

Coolant Pump



Dimensions: 2400 x 1700 x 1650mm

Weight: 1800KGS
