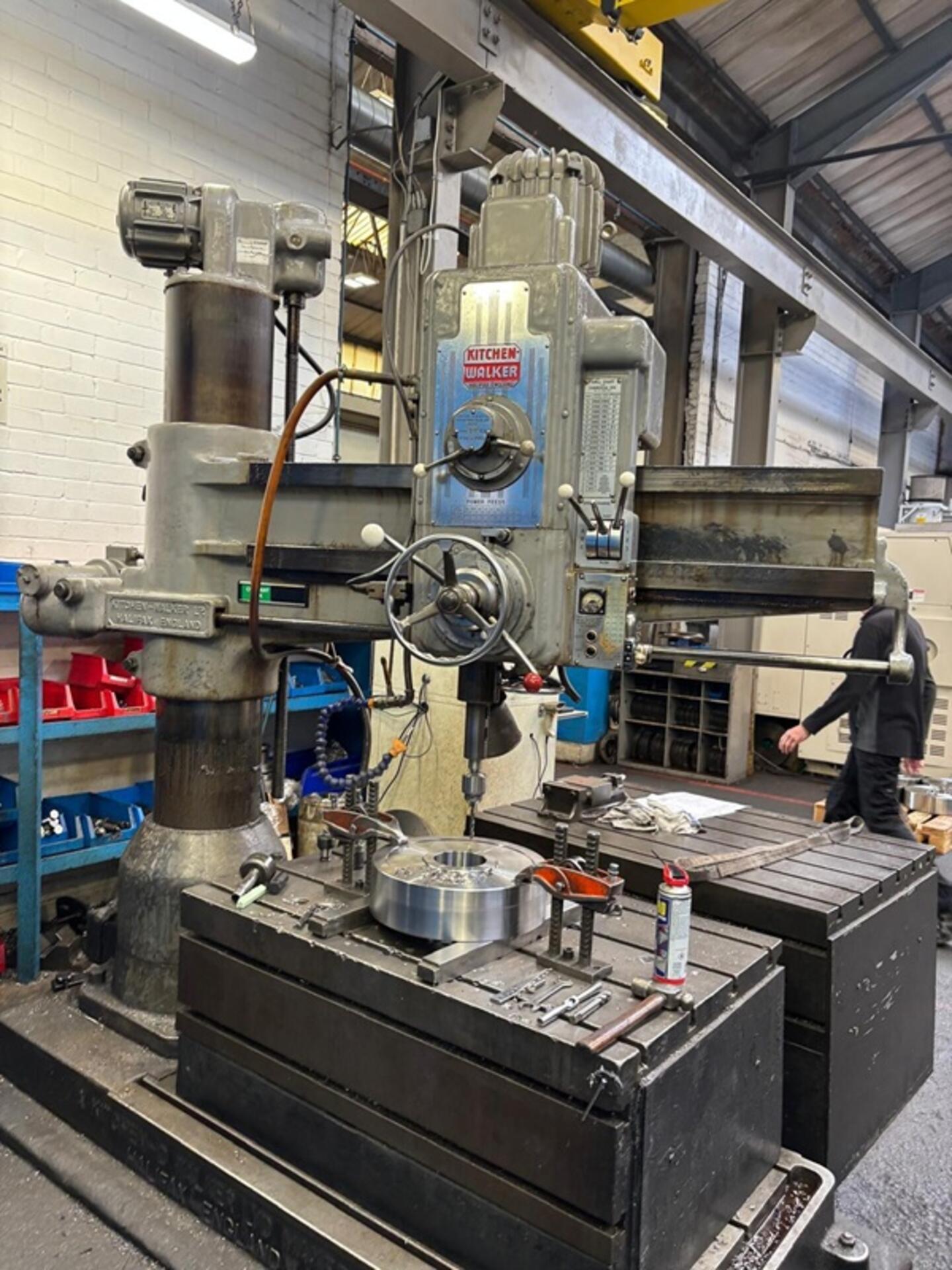

Kitchen and Walker E-2 5’-0” Radial Drill

Code: ST4213

Kitchen and Walker Radial Drill



Model:                                    E2 5’-0”

Spindle Taper:                      No 4 Morse

Spindle Speeds:                   25-1560 RPM



Radius Of Spindle:              Max: 1575mm

                                                Min: 430mm



Traverse Along Arm:           1170mm



Spindle To Base Plate:       Max: 1257mm

                                                Min: 152mm

Machine With:

Coolant and Fittings

Safety Brake

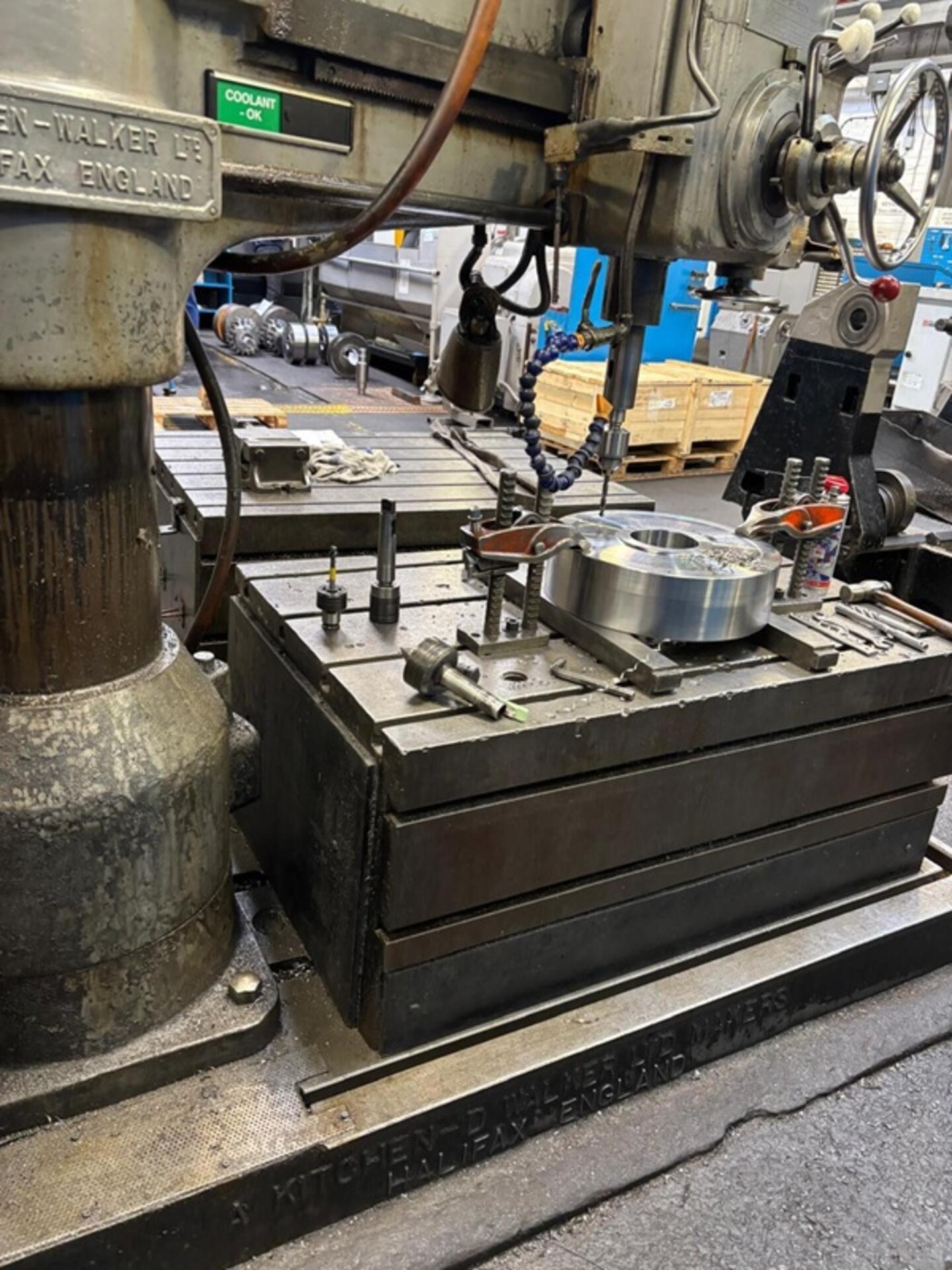

Box Table

Ammeter



Dimensions: 2310 x 940 x 2590mm

Weight: 3962 Kgs
